Application of SigBridgeR to Single-cell Spatial Transcriptomics Data
Source:vignettes/Spatial_Transcriptome.Rmd
Spatial_Transcriptome.Rmd
library(SigBridgeR)
#> ✔ SigBridgeR v3.5.0 loaded
library(Seurat)
#> Loading required package: SeuratObject
#> Loading required package: sp
#> 'SeuratObject' was built under R 4.5.0 but the current version is
#> 4.5.2; it is recomended that you reinstall 'SeuratObject' as the ABI
#> for R may have changed
#>
#> Attaching package: 'SeuratObject'
#> The following objects are masked from 'package:base':
#>
#> intersect, tLoad Data
Single Cell Transcriptomics
We will use GSE274103 from NCBI GEO as an example. The
file organization process is not described in detail here.
data_dir <- "GSE274103"
samples <- c(
"GSM8443449_PDAC-p1",
"GSM8443450_PDAC-p2",
"GSM8443451_PDAC-p3",
"GSM8443452_PDAC-p4",
"GSM8443453_PDAC-p5"
)
spatial_list <- lapply(samples, function(sample) {
seurat <- Load10X_Spatial(
data.dir = file.path(data_dir, sample),
slice = sample,
assay = "Spatial"
)
seurat <- subset(
seurat,
nCount_Spatial > 0L &
nFeature_Spatial > 0L
)
SCTransform(seurat, assay = "Spatial")
})
spatials <- merge(
x = spatial_list[[1]],
y = unlist(spatial_list[-1]),
add.cell.ids = samples,
merge.data = TRUE,
project = "Integrated Spatial Seurat"
)
# DefaultAssay(spatials) <- "SCT"
VariableFeatures(spatials) <- lapply(spatial_list, function(seurat) {
VariableFeatures(seurat)
}) %>%
unlist() %>%
unique()
spatials <- RunPCA(spatials) %>%
FindNeighbors(dims = 1:30) %>%
FindClusters() %>%
RunUMAP(dims = 1:30)
# SeuratObject::SaveSeuratRds(spatials, "seurat.rds")In theory, this workflow could be simplified using
SCPreProcess; however, due to the performance issue
reported in Seurat
#10153—where SCTransform hangs or slows down
significantly when called via do.call (as
SCPreProcess does internally)—we instead use a custom
workflow here to avoid the slowdown.
(It hasn’t been fixed yet. If it gets resolved, please kindly notify me in the issue—thank you! :))
Bulk RNA Seq & Survival
The bulk RNA-seq example data used here is from TCGA-PAAD. Due to copyright restrictions, it is provided solely for illustrative purposes in the vignette.
bulk <- readRDS("TCGA-PAAD.rds")
# TCGA-2J-AAB1-01 TCGA-2J-AAB4-01 TCGA-2J-AAB6-01 TCGA-2J-AAB8-01
# TSPAN6 10.336507 10.992938 10.143383 9.415742
# TNMD 0.000000 0.000000 0.000000 2.584963
# DPM1 9.967226 10.327553 10.974415 9.527477
# SCYL3 9.479780 9.481799 8.370687 9.142107The corresponding TCGA survival data can be obtained from UCSC Xena (via UCSCXenaShiny). And we match the corresponding samples in both the bulk RNA-seq data and the survival information.
library(UCSCXenaShiny)
tcga_surv <- load_data("tcga_surv")
paad_samples <- colnames(bulk)
tcga_paad_surv <- dplyr::filter(tcga_surv, sample %in% paad_samples) %>%
dplyr::select(sample, OS.time, OS) %>%
dplyr::rename(time = OS.time, status = OS) %>%
dplyr::filter(status != "NA", time != "NA", !is.na(status), !is.na(time)) %>%
tibble::column_to_rownames(var = "sample")
head(tcga_paad_surv)
# time status
# TCGA-2J-AAB1-01 66 1
# TCGA-2J-AAB4-01 729 0
# TCGA-2J-AAB6-01 293 1
# TCGA-2J-AAB8-01 80 0
# TCGA-2J-AAB9-01 627 1
# TCGA-2J-AABA-01 607 1
bulk <- bulk[, rownames(tcga_paad_surv)]We will use a single-cell phenotype-based screening algorithm to identify cell populations associated with poor survival prognosis. However, to determine the identity of these cells, we first need to perform cell type annotation on the data.
Annotation of Single Cell Data
Here we demonstrate the usage of mLLMCelltype. We also provide support for SingleR and CellTypist (see Auxiliary Utils for details and usage).
Here we use DeepSeek v3 only as an example. Generally speaking, the more powerful the model and the greater the number of models used, the higher the prediction accuracy of mLLMCelltype.
spatials <- Seurat::PrepSCTFindMarkers(spatials)
spatials <- SCAnnotate(
spatials,
models = c("deepseek-chat"),
api_keys = list(
deepseek = "sk-1234567890"
)
)
# SeuratObject::SaveSeuratRds(spatials, "seurat.rds")
# ℹ [2026/02/09 11:26:14] [mLLMCelltype] Start annotating cell types
# ℹ [2026/02/09 11:26:14] Find marker genes for each clusters
# Calculating cluster 0
# Calculating cluster 1
# Calculating cluster 2
# Calculating cluster 3
# Calculating cluster 4
# Calculating cluster 5
# Calculating cluster 6
# Calculating cluster 7
# Calculating cluster 8
# Calculating cluster 9
# Calculating cluster 10
# Calculating cluster 11
# Calculating cluster 12
# Calculating cluster 13
# Calculating cluster 14
# Calculating cluster 15
# Calculating cluster 16
# Calculating cluster 17
# Calculating cluster 18
# Calculating cluster 19
# Calculating cluster 20
# Calculating cluster 21
# Calculating cluster 22
# Calculating cluster 23
# Calculating cluster 24
# ℹ [2026/02/09 11:28:42] Large language models cell type Annotating
# ###
# # LLM Output
# ###
# ✔ [2026/02/09 11:28:46] Annotation Finished
table(spatials$mllmcelltype_cell_type)
# Acinar cells Adipocytes B cells Chondrocytes Endothelial cells
# 594 633 2314 920 2122
# Enterocytes Epithelial cells Fibroblasts Gastric cells Goblet cells
# 2018 4799 3395 547 646
# Keratinocytes Macrophages Mesothelial cells Neuroendocrine cells Smooth muscle cells
# 1135 879 242 1751 254
# T cells
# 1187Screen Phenotype-associated Cells
We can now run the screening. Let’s try Scissor.
res <- Screen(
matched_bulk = bulk,
sc_data = spatials,
phenotype = tcga_paad_surv,
phenotype_class = "survival",
screen_method = "Scissor",
assay = "SCT"
)
# SeuratObject::SaveSeuratRds(res$scRNA_data, "screened_seurat.rds")
# ℹ `label_type` not specified or not of length 1, using "Scissor"
# ℹ [2026/02/09 15:40:19] Scissor start...
# ℹ [2026/02/09 15:40:19] Start from raw data...
# ℹ Using "SCT_snn" graph for network.
# ℹ [2026/02/09 15:40:24] Normalizing quantiles of data
# ℹ [2026/02/09 15:41:21] Subsetting data
# ℹ [2026/02/09 15:41:27] Calculating correlation
# -------------------------------------------------------------
# Five-number summary of correlations:
# 0.220832 0.388996 0.414044 0.433624 0.47267
# -------------------------------------------------------------
# ℹ [2026/02/09 15:41:39] Perform cox regression on the given clinical outcomes...
# ✔ [2026/02/09 15:42:43] Statistics data saved to Scissor_inputs.RData.
# ℹ [2026/02/09 15:42:47] Screening...
# ── At alpha = 0.05 ──
# Scissor identified 1789 Scissor+ cells and 1617 Scissor- cells.
# The percentage of selected cell is: 14.533%
# ℹ [2026/02/09 15:45:05] Scissor Ended.data
The returned structure is a list, where the first
slot—scRNA_data—contains the Seurat object. Additional
slots in the list store intermediate data generated during the
process.
A new column named Scissor will be added to the
meta.data of the Seurat object, with three possible
labels:
-
Positive denotes cells whose abundance or activity
is positively correlated with the phenotype of
interest—specifically, those associated with poor
prognosis.
-
Negative denotes cells that are negatively
correlated with the phenotype (i.e., potentially protective or
associated with better outcomes).
- Neutral cells can be interpreted as background or non-informative cells—those showing little to no association with the phenotype.
files
A new file named Scissor_inputs.RData will be created,
which contains the input data for the Scissor algorithm. You can use the
intermediate data for repeated runs to save time when tuning parameters,
avoiding the need to re-run the entire pipeline from scratch. This is an
inherent feature of the Scissor.
note
Other methods (e.g., scAB, scPAS,
etc.) can also be used. In this vignette, we only introduce and apply
Scissor. When using alternative algorithms, remember to
explicitly specify assay = "SCT", as these functions
typically default to assay = "RNA", whereas our data has
been processed with SCTransform.
Visualization of Screened Cells
Finally we can visualize the results. Here, we just provide a brief demonstration using Seurat’s built-in visualization functions, as visualization preferences vary from user to user. If you need additional features, feel free to request them in an issue. :)

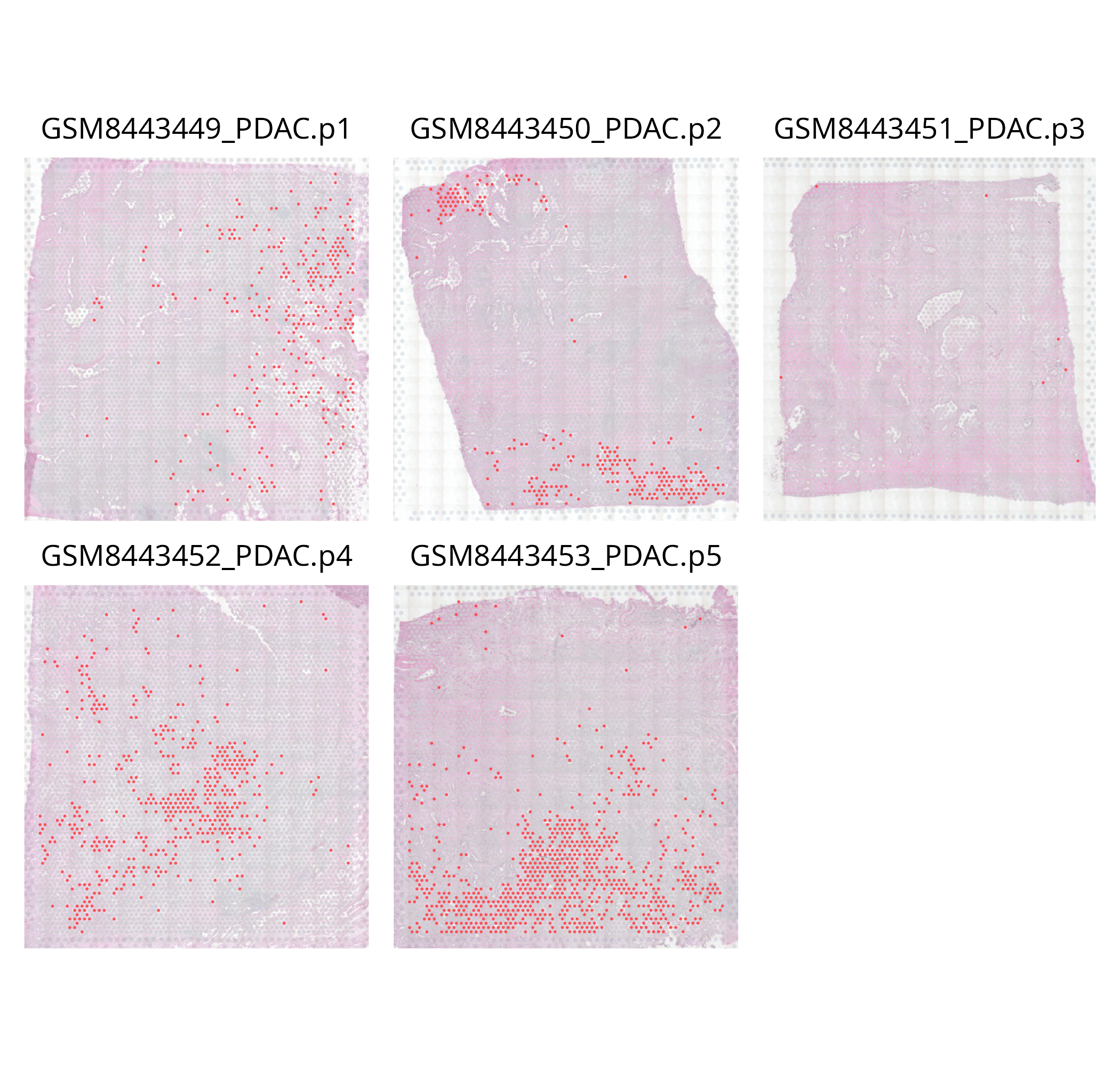

Let’s first see the spatial position of the Positive cells.
positive_cell <- colnames(res$scRNA_data)[
res$scRNA_data$scissor == "Positive"
]
p <- Seurat::SpatialDimPlot(
res$scRNA_data,
cells.highlight = positive_cell,
ncol = 3L,
image.alpha = 0.5,
cols.highlight = c("#ff3333", "#CECECE"),
alpha = c(0.8, 1)
) &
ggplot2::theme(legend.position = "none")
# ggplot2::ggsave(
# "vignettes/example_figures/spatial_dim_plot.png",
# p,
# width = 14,
# height = 7
# ))
To visualize the cellular composition of Positive cells:
p2 <- Seurat::SpatialDimPlot(
spatials,
group.by = "mllmcelltype_cell_type",
ncol = 3
)
# ggplot2::ggsave(
# "vignettes/example_figures/mllmcelltype_spatial.png",
# p2,
# width = 14,
# height = 7
# ))
To statistically assess the composition of Positive cells, you can do the following:
table(res$scRNA_data$mllmcelltype_cell_type[
res$scRNA_data$scissor == "Positive"
])
# Acinar cells Adipocytes B cells Chondrocytes Endothelial cells
# 106 100 98 566 27
# Enterocytes Epithelial cells Fibroblasts Gastric cells Goblet cells
# 106 406 319 23 9
# Keratinocytes Macrophages Mesothelial cells Neuroendocrine cells Smooth muscle cells
# 7 17 2 43 54The proportion of Positive cells within each cell type can be calculated using the following code:
cell_total <- table(res$scRNA_data$mllmcelltype_cell_type)
cell_positive <- table(res$scRNA_data$mllmcelltype_cell_type[
res$scRNA_data$scissor == "Positive"
])
ratios <- cell_positive[match(names(cell_total), names(cell_positive))] /
cell_total
ratios[is.na(ratios)] <- 0
result <- sort(round(ratios, 4), decreasing = TRUE)
result
# Chondrocytes Smooth muscle cells Acinar cells Adipocytes Fibroblasts
# 0.6152 0.2126 0.1785 0.1580 0.0940
# Epithelial cells Enterocytes B cells Gastric cells Neuroendocrine cells
# 0.0846 0.0525 0.0424 0.0420 0.0246
# Macrophages Goblet cells Endothelial cells Mesothelial cells Keratinocytes
# 0.0193 0.0139 0.0127 0.0083 0.0062
# T cells
# 0.0000Sessioninfo
sessionInfo()
#> R version 4.5.2 (2025-10-31)
#> Platform: x86_64-pc-linux-gnu
#> Running under: Ubuntu 24.04.3 LTS
#>
#> Matrix products: default
#> BLAS: /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
#> LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so; LAPACK version 3.12.0
#>
#> locale:
#> [1] LC_CTYPE=C.UTF-8 LC_NUMERIC=C LC_TIME=C.UTF-8
#> [4] LC_COLLATE=C.UTF-8 LC_MONETARY=C.UTF-8 LC_MESSAGES=C.UTF-8
#> [7] LC_PAPER=C.UTF-8 LC_NAME=C LC_ADDRESS=C
#> [10] LC_TELEPHONE=C LC_MEASUREMENT=C.UTF-8 LC_IDENTIFICATION=C
#>
#> time zone: UTC
#> tzcode source: system (glibc)
#>
#> attached base packages:
#> [1] stats graphics grDevices utils datasets methods base
#>
#> other attached packages:
#> [1] Seurat_5.4.0 SeuratObject_5.3.0 sp_2.2-1 SigBridgeR_3.5.0
#>
#> loaded via a namespace (and not attached):
#> [1] deldir_2.0-4 pbapply_1.7-4 gridExtra_2.3
#> [4] rlang_1.1.7 magrittr_2.0.4 RcppAnnoy_0.0.23
#> [7] otel_0.2.0 spatstat.geom_3.7-0 matrixStats_1.5.0
#> [10] ggridges_0.5.7 compiler_4.5.2 png_0.1-8
#> [13] systemfonts_1.3.2 vctrs_0.7.1 reshape2_1.4.5
#> [16] stringr_1.6.0 pkgconfig_2.0.3 fastmap_1.2.0
#> [19] promises_1.5.0 rmarkdown_2.30 ragg_1.5.1
#> [22] purrr_1.2.1 xfun_0.56 cachem_1.1.0
#> [25] jsonlite_2.0.0 goftest_1.2-3 later_1.4.8
#> [28] spatstat.utils_3.2-1 irlba_2.3.7 parallel_4.5.2
#> [31] cluster_2.1.8.1 R6_2.6.1 ica_1.0-3
#> [34] spatstat.data_3.1-9 bslib_0.10.0 stringi_1.8.7
#> [37] RColorBrewer_1.1-3 reticulate_1.45.0 spatstat.univar_3.1-6
#> [40] parallelly_1.46.1 lmtest_0.9-40 jquerylib_0.1.4
#> [43] scattermore_1.2 Rcpp_1.1.1 knitr_1.51
#> [46] tensor_1.5.1 future.apply_1.20.2 zoo_1.8-15
#> [49] sctransform_0.4.3 httpuv_1.6.16 Matrix_1.7-4
#> [52] splines_4.5.2 igraph_2.2.2 tidyselect_1.2.1
#> [55] abind_1.4-8 yaml_2.3.12 spatstat.random_3.4-4
#> [58] spatstat.explore_3.7-0 codetools_0.2-20 miniUI_0.1.2
#> [61] listenv_0.10.0 lattice_0.22-7 tibble_3.3.1
#> [64] plyr_1.8.9 shiny_1.13.0 S7_0.2.1
#> [67] ROCR_1.0-12 evaluate_1.0.5 Rtsne_0.17
#> [70] future_1.69.0 fastDummies_1.7.5 desc_1.4.3
#> [73] survival_3.8-3 polyclip_1.10-7 fitdistrplus_1.2-6
#> [76] pillar_1.11.1 KernSmooth_2.23-26 plotly_4.12.0
#> [79] generics_0.1.4 RcppHNSW_0.6.0 ggplot2_4.0.2
#> [82] scales_1.4.0 globals_0.19.0 xtable_1.8-8
#> [85] glue_1.8.0 lazyeval_0.2.2 tools_4.5.2
#> [88] data.table_1.18.2.1 RSpectra_0.16-2 RANN_2.6.2
#> [91] fs_1.6.7 dotCall64_1.2 cowplot_1.2.0
#> [94] grid_4.5.2 tidyr_1.3.2 nlme_3.1-168
#> [97] patchwork_1.3.2 cli_3.6.5 spatstat.sparse_3.1-0
#> [100] textshaping_1.0.5 spam_2.11-3 viridisLite_0.4.3
#> [103] dplyr_1.2.0 uwot_0.2.4 gtable_0.3.6
#> [106] sass_0.4.10 digest_0.6.39 progressr_0.18.0
#> [109] ggrepel_0.9.7 htmlwidgets_1.6.4 farver_2.1.2
#> [112] htmltools_0.5.9 pkgdown_2.2.0 lifecycle_1.0.5
#> [115] httr_1.4.8 mime_0.13 MASS_7.3-65
