R6 class representing a regression model

Source: R/REGModel.R
REGModel.Rd

Contains fields storing data and methods to build, process and visualize a regression model. Currently, this class is designed for CoxPH (survival::coxph()) and GLM (stats::glm()) regression models.

Public fields

data

A data.table storing modeling data.

recipe

An R formula storing model formula.

terms

Variables for modeling.

args

Other arguments used for building model.

model

A constructed model.

type

Model type (class).

result

Model result, a object of parameters_model. Can be converted into data.frame with as.data.frame() or data.table::as.data.table().

forest_data

More detailed data used for plotting forest.

Methods

Public methods

Method new()

Build a REGModel object.

Usage

REGModel$new(
  data,
  recipe,
  ...,
  f = c("coxph", "binomial", "gaussian", "Gamma", "inverse.gaussian", "poisson", "quasi",
    "quasibinomial", "quasipoisson"),
  exp = NULL,
  ci = 0.95
)

Arguments

data

A data.table storing modeling data.

recipe

An R formula or a list with two elements 'x' and 'y', where 'x' is for independent variables and 'y' is for dependent variable. See examples for detail operation.

...

other parameters passing to corresponding regression model function.

f

A length-1 string specifying modeling function or family of glm(), default is 'coxph'. Other options are members of GLM family, see stats::family(). 'binomial' is logistic regression, and 'gaussian' is linear regression.

exp

Logical, indicating whether or not to exponentiate the the coefficients.

ci

Confidence Interval (CI) level. Default to 0.95 (95%). e.g. survival::coxph().

Returns

A REGModel R6 object.

Method get_forest_data()

Get tidy data for plotting forest.

Usage

REGModel$get_forest_data(separate_factor = FALSE, global_p = FALSE)

Arguments

separate_factor

Separate factor/class as a blank row.

global_p

If TRUE, return global p value.

Method plot_forest()

Plot forest.

Usage

REGModel$plot_forest(ref_line = NULL, xlim = NULL, ...)

Arguments

ref_line

Reference line, default is 1 for HR.

xlim

Limits of x axis.

...

Other plot options passing to forestploter::forest(). Also check https://github.com/adayim/forestploter to see more complex adjustment of the result plot.

Method plot()

Print the REGModel$result with default plot methods from see package.

Usage

REGModel$plot(...)

Arguments

...

Other parameters passing to plot() in see:::plot.see_parameters_model function.

Method print()

Print the REGModel object

Usage

REGModel$print(...)

Arguments

...

Unused.

Method clone()

The objects of this class are cloneable with this method.

Usage

REGModel$clone(deep = FALSE)

Arguments

deep

Whether to make a deep clone.

Examples

library(survival)
test1 <- data.frame(
  time = c(4, 3, 1, 1, 2, 2, 3),
  status = c(1, 1, 1, 0, 1, 1, 0),
  x = c(0, 2, 1, 1, 1, 0, 0),
  sex = c(0, 0, 0, 0, 1, 1, 1)
)
test1$sex <- factor(test1$sex)

# --------------
# Build a model
# --------------

# way 1:
mm <- REGModel$new(
  test1,
  Surv(time, status) ~ x + strata(sex)
)
mm
#> <REGModel>    ==========
#>
#> Parameter | Coefficient |   SE |        95% CI |    z |     p
#> -------------------------------------------------------------
#> x         |        2.23 | 1.83 | [0.45, 11.18] | 0.98 | 0.329
#>
#> Uncertainty intervals (equal-tailed) and p-values (two-tailed) computed
#>   using a Wald z-distribution approximation.
#> [coxph] model ==========
as.data.frame(mm$result)
#>   Parameter Coefficient      SE   CI    CI_low  CI_high         z df_error
#> 1         x    2.230706 1.83448 0.95 0.4450758 11.18022 0.9756088      Inf
#>           p
#> 1 0.3292583

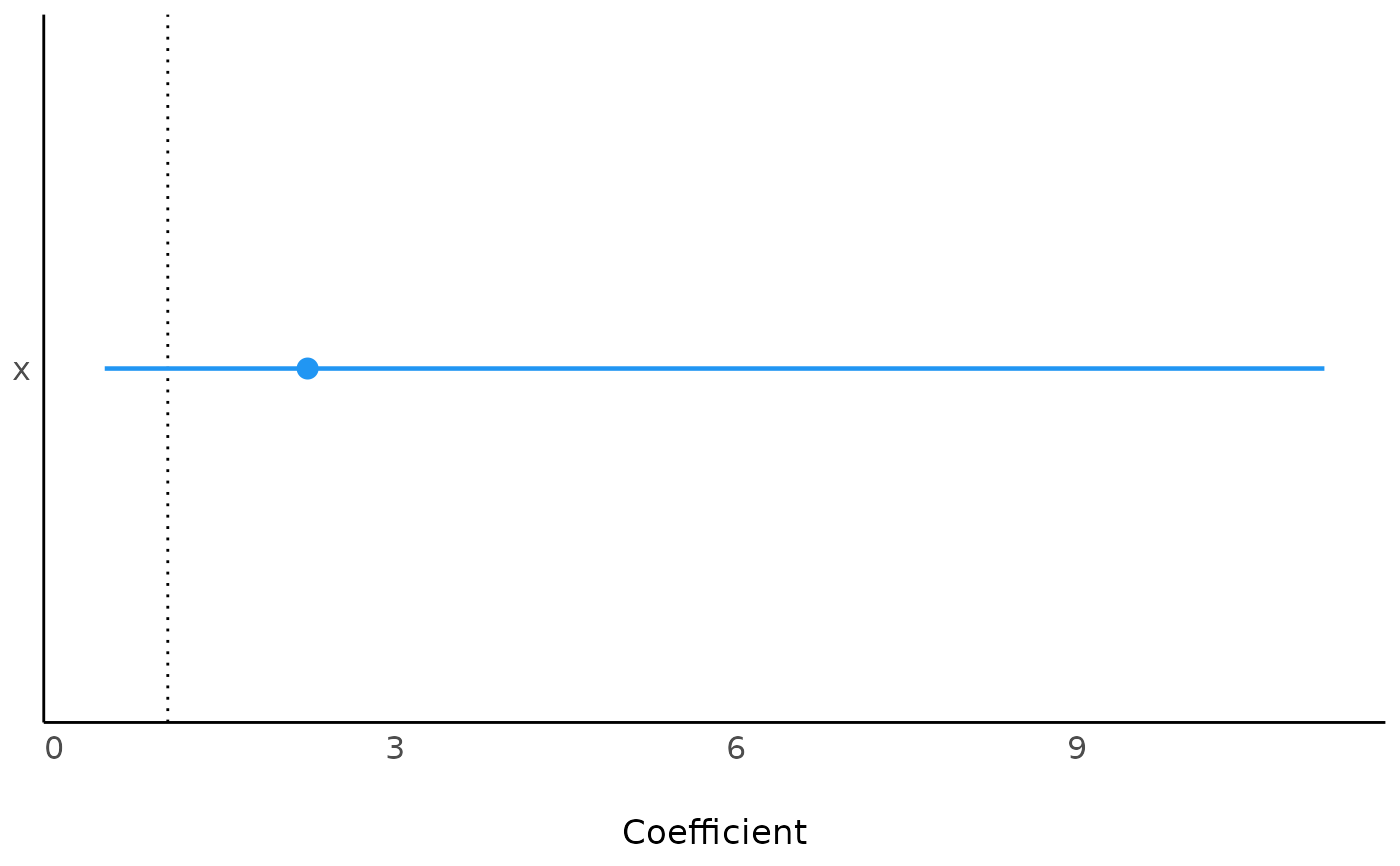

if (require("see")) mm$plot()
#> Loading required package: see

mm$print() # Same as print(mm)
#> <REGModel>    ==========
#>
#> Parameter | Coefficient |   SE |        95% CI |    z |     p
#> -------------------------------------------------------------
#> x         |        2.23 | 1.83 | [0.45, 11.18] | 0.98 | 0.329
#>
#> Uncertainty intervals (equal-tailed) and p-values (two-tailed) computed
#>   using a Wald z-distribution approximation.
#> [coxph] model ==========

# way 2:
mm2 <- REGModel$new(
  test1,
  recipe = list(
    x = c("x", "strata(sex)"),
    y = c("time", "status")
  )
)
mm2
#> <REGModel>    ==========
#>
#> Parameter | Coefficient |   SE |        95% CI |    z |     p
#> -------------------------------------------------------------
#> x         |        2.23 | 1.83 | [0.45, 11.18] | 0.98 | 0.329
#>
#> Uncertainty intervals (equal-tailed) and p-values (two-tailed) computed
#>   using a Wald z-distribution approximation.
#> [coxph] model ==========

# Add other parameters, e.g., weights
# For more, see ?coxph
mm3 <- REGModel$new(
  test1,
  recipe = list(
    x = c("x", "strata(sex)"),
    y = c("time", "status")
  ),
  weights = c(1, 1, 1, 2, 2, 2, 3)
)
mm3$args
#> $weights
#> [1] 1 1 1 2 2 2 3
#>

# ----------------------
# Another type of model
# ----------------------
library(stats)
counts <- c(18, 17, 15, 20, 10, 20, 25, 13, 12)
outcome <- gl(3, 1, 9)
treatment <- gl(3, 3)
data <- data.frame(treatment, outcome, counts)

mm4 <- REGModel$new(
  data,
  counts ~ outcome + treatment,
  f = "poisson"
)
mm4
#> <REGModel>    ==========
#>
#> Parameter     | Log-Mean |   SE |         95% CI |        z |      p
#> --------------------------------------------------------------------
#> (Intercept)   |     3.04 | 0.17 | [ 2.70,  3.37] |    17.81 | < .001
#> outcome [2]   |    -0.45 | 0.20 | [-0.86, -0.06] |    -2.25 | 0.025
#> outcome [3]   |    -0.29 | 0.19 | [-0.68,  0.08] |    -1.52 | 0.128
#> treatment [2] | 1.01e-15 | 0.20 | [-0.39,  0.39] | 5.06e-15 | > .999
#> treatment [3] | 7.11e-16 | 0.20 | [-0.39,  0.39] | 3.55e-15 | > .999
#>
#> Uncertainty intervals (profile-likelihood) and p-values (two-tailed)
#>   computed using a Wald z-distribution approximation.
#>
#> The model has a log- or logit-link. Consider using `exponentiate =
#>   TRUE` to interpret coefficients as ratios.
#> [glm/lm] model ==========
mm4$plot_forest()
#> Never call '$get_forest_data()' before, run with default options to get plotting data

mm4$get_forest_data()
mm4$plot_forest()
