Easy and Efficient Batch Processing of Regression Models • bregr

The bregr package revolutionizes batch regression modeling in R, enabling you to run hundreds of models simultaneously with a clean, intuitive workflow. Designed for both univariate and multivariate analyses, it delivers tidy-formatted results and publication-ready visualizations, transforming cumbersome statistical workflows into efficient pipelines.

Key Features

🚀 Batch Processing: Automate regression modeling across multiple dependent/independent variables.
📊 Tidy Output: Structured results compatible with tidyverse for seamless downstream analysis.
📈 Integrated Visualization: One-command forest plots and model diagnostics.
⚡️ Unified Workflow: Chain operations with native R pipes (|>).
📦 Model Agnostic: Supports linear models, Cox regression, and more.

Batch Regression Modeling Overview

Batch regression streamlines analyses where:

Each model shares identical control variables ( $c_1$ , $c_2$ , …).
Focal predictors ( $x_1$ , $x_2$ , …) or response variables ( $y_1$ , $y_2$ , …) vary systematically.

A simplified overview of batch regression modeling is given below for illustration:

Installation

You can install the stable version of bregr from CRAN with:

install.packages("bregr")

Alternatively, install the development version from r-universe with:

install.packages('bregr', repos = c('https://wanglabcsu.r-universe.dev', 'https://cloud.r-project.org'))

or from GitHub with:

#install.packages("remotes")
remotes::install_github("WangLabCSU/bregr")

Usage

Load package(s):

library(bregr)
#> Welcome to 'bregr' package!
#> =======================================================================
#> You are using bregr version 1.1.0.9000
#>
#> Project home : https://github.com/WangLabCSU/bregr
#> Documentation: https://wanglabcsu.github.io/bregr/
#> Cite as      : arXiv:2110.14232
#> =======================================================================
#>

Load data:

lung <- survival::lung |>
  dplyr::filter(ph.ecog != 3)
lung$ph.ecog <- factor(lung$ph.ecog)

bregr is designed and implemented following Tidy design principles and Tidyverse style guide, making it intuitive and user-friendly.

Core workflow

Define and construct batch models:

mds <- breg(lung) |> # Init breg object
  br_set_y(c("time", "status")) |> # Survival outcomes
  br_set_x(colnames(lung)[6:10]) |> # Focal predictors
  br_set_x2(c("age", "sex")) |> # Controls
  br_set_model("coxph") |> # Cox Proportional Hazards
  br_run() # Execute models
#> exponentiate estimates of model(s) constructed from coxph method at default

One-Step Pipeline

mds <- br_pipeline(
  lung,
  y = c("time", "status"),
  x = colnames(lung)[6:10],
  x2 = c("age", "sex"),
  method = "coxph"
)

Run in parallel:

mds_p <- br_pipeline(
  lung,
  y = c("time", "status"),
  x = colnames(lung)[6:10],
  x2 = c("age", "sex"),
  method = "coxph",
  n_workers = 3
)
#> exponentiate estimates of model(s) constructed from coxph method at default
#> ■■■■■■■                           20% | ETA: 46s
#>

all.equal(mds, mds_p)
#> [1] TRUE

Two global options have been introduced to control whether models are saved as local files (bregr.save_model, default is FALSE) and where they should be saved (bregr.path, default uses a temporary path).

Output Inspection

Use br_get_*() function family to access attributes and data of result breg object.

br_get_models(mds) # Raw model objects
#> $ph.ecog
#> Call:
#> survival::coxph(formula = survival::Surv(time, status) ~ ph.ecog +
#>     age + sex, data = data)
#>
#>               coef exp(coef)  se(coef)      z        p
#> ph.ecog1  0.409836  1.506571  0.199606  2.053  0.04005
#> ph.ecog2  0.902321  2.465318  0.228092  3.956 7.62e-05
#> age       0.010777  1.010836  0.009312  1.157  0.24713
#> sex      -0.545631  0.579476  0.168229 -3.243  0.00118
#>
#> Likelihood ratio test=28.94  on 4 df, p=8.052e-06
#> n= 226, number of events= 163
#>
#> $ph.karno
#> Call:
#> survival::coxph(formula = survival::Surv(time, status) ~ ph.karno +
#>     age + sex, data = data)
#>
#>               coef exp(coef)  se(coef)      z       p
#> ph.karno -0.012238  0.987837  0.005946 -2.058 0.03957
#> age       0.012615  1.012695  0.009462  1.333 0.18244
#> sex      -0.485116  0.615626  0.168170 -2.885 0.00392
#>
#> Likelihood ratio test=17.21  on 3 df, p=0.0006413
#> n= 225, number of events= 162
#>    (1 observation deleted due to missingness)
#>
#> $pat.karno
#> Call:
#> survival::coxph(formula = survival::Surv(time, status) ~ pat.karno +
#>     age + sex, data = data)
#>
#>                coef exp(coef)  se(coef)      z        p
#> pat.karno -0.018736  0.981439  0.005676 -3.301 0.000964
#> age        0.011672  1.011740  0.009381  1.244 0.213436
#> sex       -0.505205  0.603382  0.169452 -2.981 0.002869
#>
#> Likelihood ratio test=23.07  on 3 df, p=3.896e-05
#> n= 223, number of events= 160
#>    (3 observations deleted due to missingness)
#>
#> $meal.cal
#> Call:
#> survival::coxph(formula = survival::Surv(time, status) ~ meal.cal +
#>     age + sex, data = data)
#>
#>                coef  exp(coef)   se(coef)      z      p
#> meal.cal -0.0001535  0.9998465  0.0002409 -0.637 0.5239
#> age       0.0149375  1.0150496  0.0106016  1.409 0.1588
#> sex      -0.4775830  0.6202808  0.1914559 -2.494 0.0126
#>
#> Likelihood ratio test=10.1  on 3 df, p=0.0177
#> n= 179, number of events= 132
#>    (47 observations deleted due to missingness)
#>
#> $wt.loss
#> Call:
#> survival::coxph(formula = survival::Surv(time, status) ~ wt.loss +
#>     age + sex, data = data)
#>
#>               coef  exp(coef)   se(coef)      z       p
#> wt.loss -0.0002676  0.9997324  0.0062908 -0.043 0.96607
#> age      0.0199314  1.0201314  0.0097178  2.051 0.04027
#> sex     -0.5067253  0.6024652  0.1748697 -2.898 0.00376
#>
#> Likelihood ratio test=13.87  on 3 df, p=0.003086
#> n= 212, number of events= 150
#>    (14 observations deleted due to missingness)
br_get_results(mds) # Comprehensive estimates
#> # A tibble: 17 × 21
#>    Focal_variable term      variable  var_label var_class var_type   var_nlevels
#>    <chr>          <chr>     <chr>     <chr>     <chr>     <chr>            <int>
#>  1 ph.ecog        ph.ecog0  ph.ecog   ph.ecog   factor    categoric…           3
#>  2 ph.ecog        ph.ecog1  ph.ecog   ph.ecog   factor    categoric…           3
#>  3 ph.ecog        ph.ecog2  ph.ecog   ph.ecog   factor    categoric…           3
#>  4 ph.ecog        age       age       age       numeric   continuous          NA
#>  5 ph.ecog        sex       sex       sex       numeric   continuous          NA
#>  6 ph.karno       ph.karno  ph.karno  ph.karno  numeric   continuous          NA
#>  7 ph.karno       age       age       age       numeric   continuous          NA
#>  8 ph.karno       sex       sex       sex       numeric   continuous          NA
#>  9 pat.karno      pat.karno pat.karno pat.karno numeric   continuous          NA
#> 10 pat.karno      age       age       age       numeric   continuous          NA
#> 11 pat.karno      sex       sex       sex       numeric   continuous          NA
#> 12 meal.cal       meal.cal  meal.cal  meal.cal  numeric   continuous          NA
#> 13 meal.cal       age       age       age       numeric   continuous          NA
#> 14 meal.cal       sex       sex       sex       numeric   continuous          NA
#> 15 wt.loss        wt.loss   wt.loss   wt.loss   numeric   continuous          NA
#> 16 wt.loss        age       age       age       numeric   continuous          NA
#> 17 wt.loss        sex       sex       sex       numeric   continuous          NA
#> # ℹ 14 more variables: contrasts <chr>, contrasts_type <chr>,
#> #   reference_row <lgl>, label <chr>, n_obs <dbl>, n_ind <dbl>, n_event <dbl>,
#> #   exposure <dbl>, estimate <dbl>, std.error <dbl>, statistic <dbl>,
#> #   p.value <dbl>, conf.low <dbl>, conf.high <dbl>
br_get_results(mds, tidy = TRUE) # Tidy-formatted coefficients
#> # A tibble: 16 × 8
#>    Focal_variable term   estimate std.error statistic p.value conf.low conf.high
#>    <chr>          <chr>     <dbl>     <dbl>     <dbl>   <dbl>    <dbl>     <dbl>
#>  1 ph.ecog        ph.ec…    1.51   0.200       2.05   4.01e-2    1.02      2.23
#>  2 ph.ecog        ph.ec…    2.47   0.228       3.96   7.62e-5    1.58      3.86
#>  3 ph.ecog        age       1.01   0.00931     1.16   2.47e-1    0.993     1.03
#>  4 ph.ecog        sex       0.579  0.168      -3.24   1.18e-3    0.417     0.806
#>  5 ph.karno       ph.ka…    0.988  0.00595    -2.06   3.96e-2    0.976     0.999
#>  6 ph.karno       age       1.01   0.00946     1.33   1.82e-1    0.994     1.03
#>  7 ph.karno       sex       0.616  0.168      -2.88   3.92e-3    0.443     0.856
#>  8 pat.karno      pat.k…    0.981  0.00568    -3.30   9.64e-4    0.971     0.992
#>  9 pat.karno      age       1.01   0.00938     1.24   2.13e-1    0.993     1.03
#> 10 pat.karno      sex       0.603  0.169      -2.98   2.87e-3    0.433     0.841
#> 11 meal.cal       meal.…    1.000  0.000241   -0.637  5.24e-1    0.999     1.00
#> 12 meal.cal       age       1.02   0.0106      1.41   1.59e-1    0.994     1.04
#> 13 meal.cal       sex       0.620  0.191      -2.49   1.26e-2    0.426     0.903
#> 14 wt.loss        wt.lo…    1.000  0.00629    -0.0425 9.66e-1    0.987     1.01
#> 15 wt.loss        age       1.02   0.00972     2.05   4.03e-2    1.00      1.04
#> 16 wt.loss        sex       0.602  0.175      -2.90   3.76e-3    0.428     0.849

Visualization

Forest Plot (Key Results)

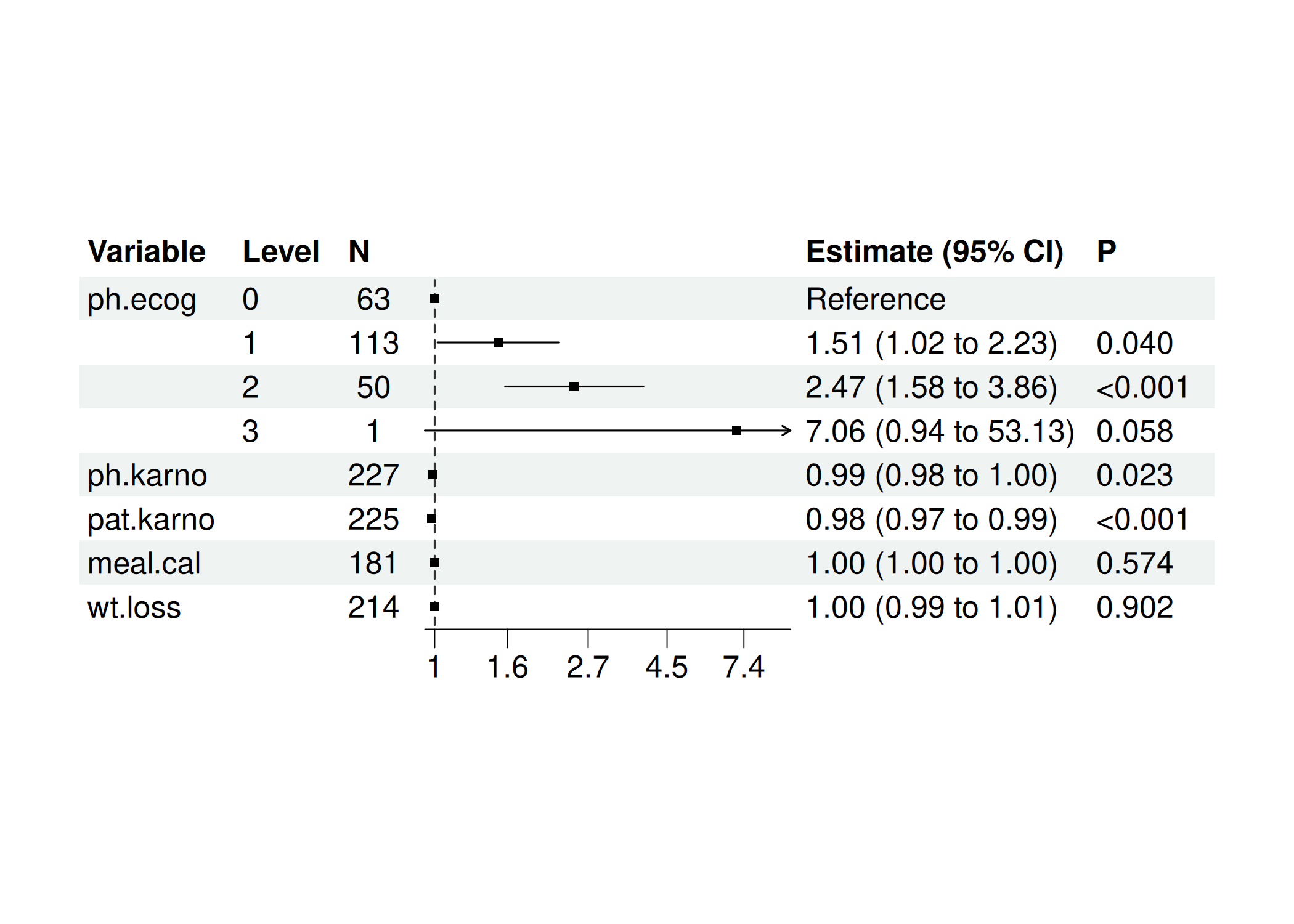

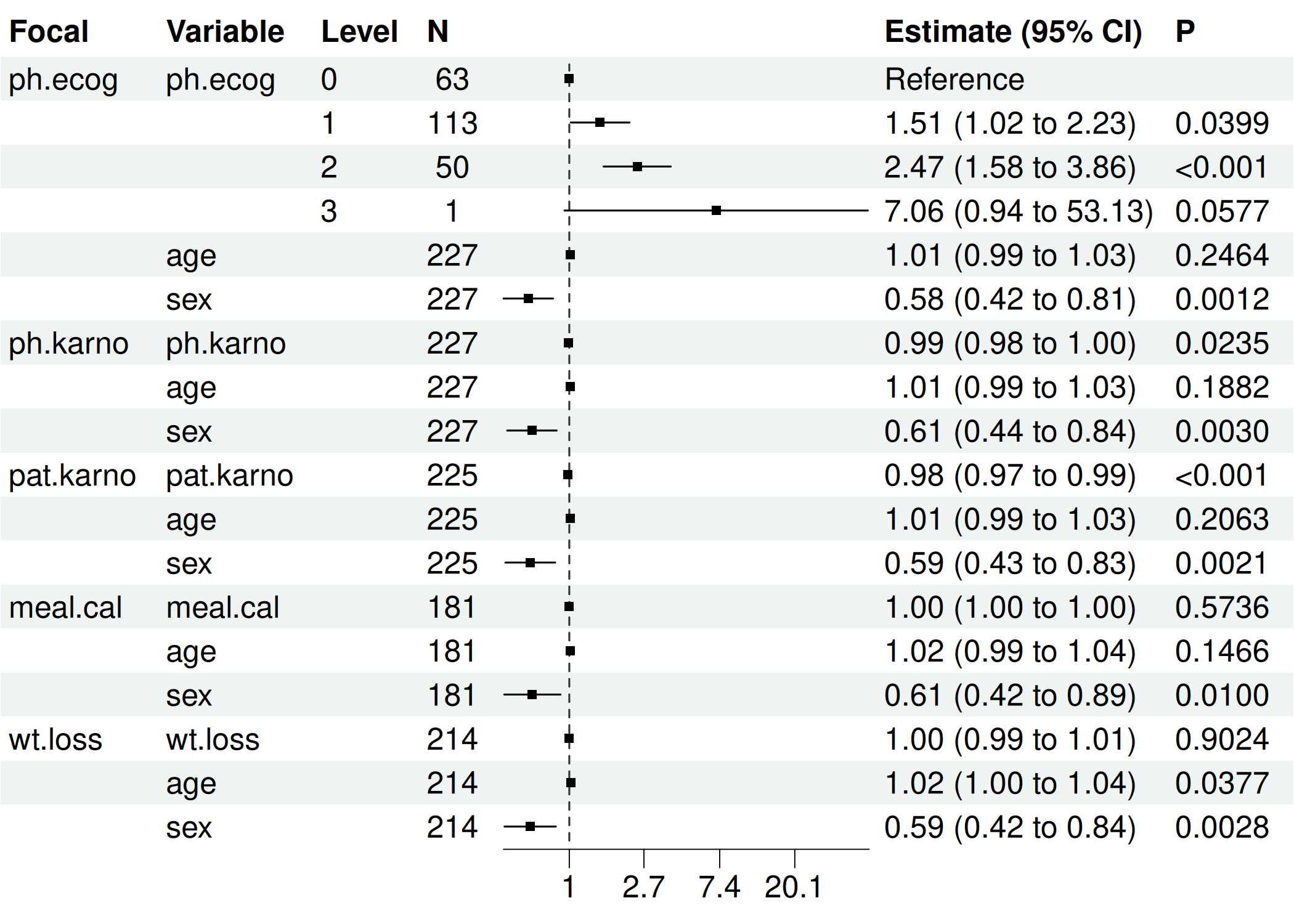

bregr mainly provides br_show_forest() for plotting data table of modeling results.

br_show_forest(mds)

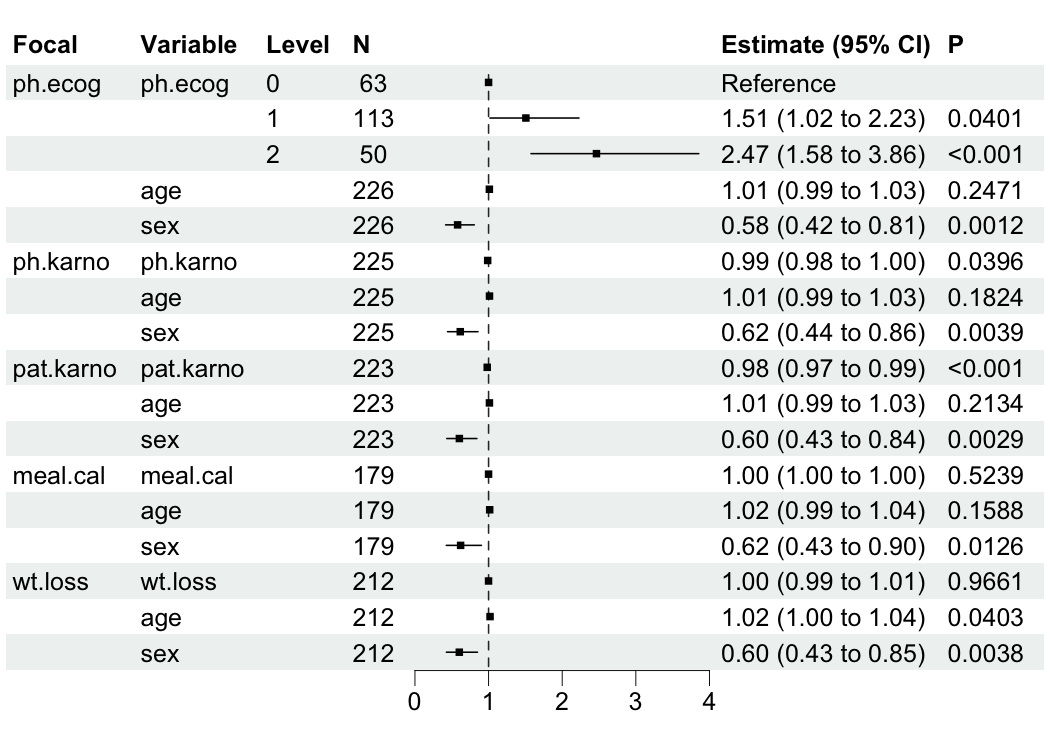

We can tune the plot to only keep focal variables and adjust the limits of x axis.

br_show_forest(
  mds,
  rm_controls = TRUE, # Focus on focal predictors
  xlim = c(0, 3), # Custom axis scaling
  #   Use x_trans = "log" to transform the axis
  #   Use log_first = TRUE to transform both
  #       the axis and estimate table
  drop = 1 # Remove redundant columns
)

We also provide some interfaces from other packages for plotting constructed model(s), e.g., br_show_forest_ggstats(), br_show_forest_ggstatsplot(), br_show_fitted_line(), and br_show_fitted_line_2d().

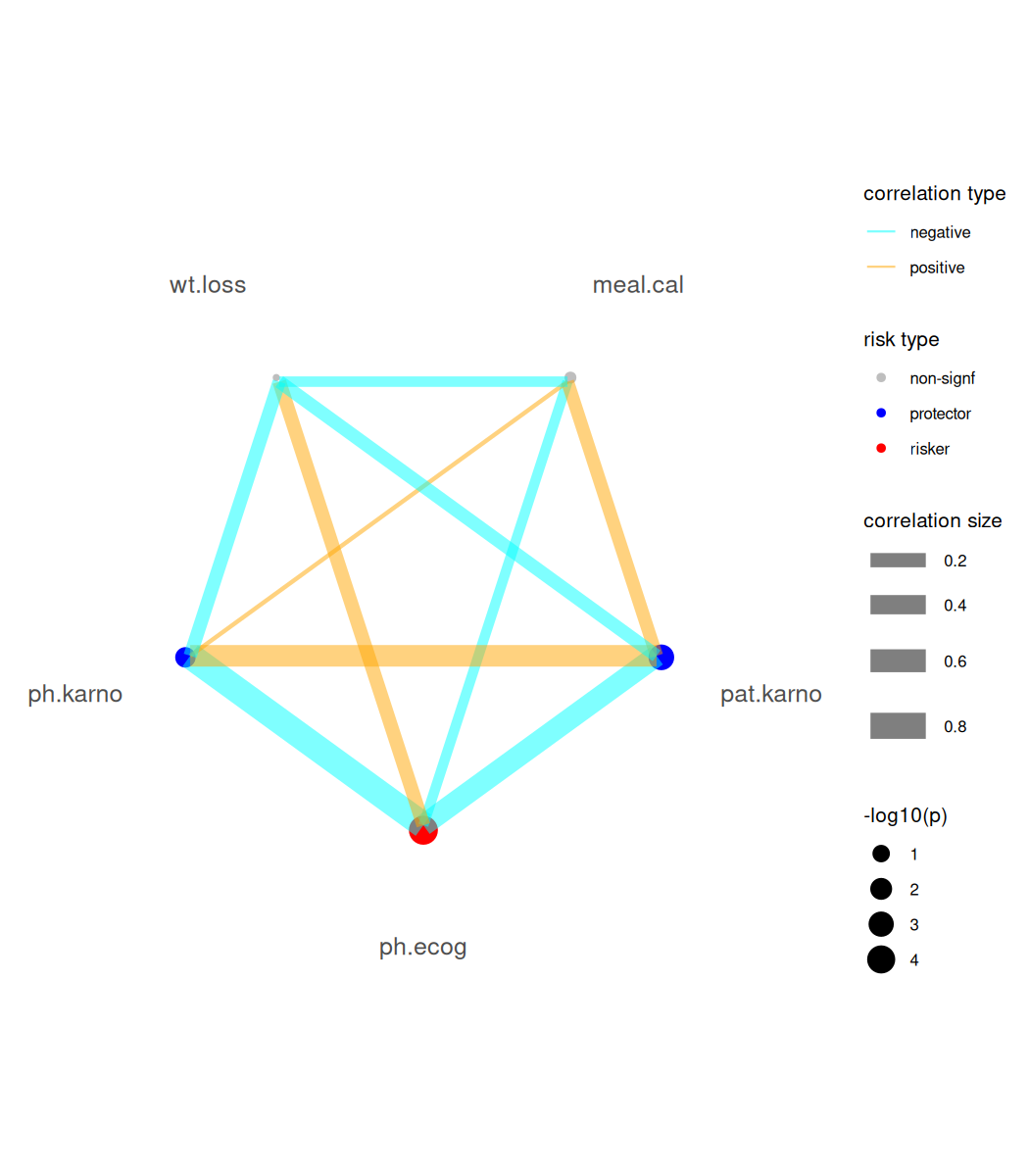

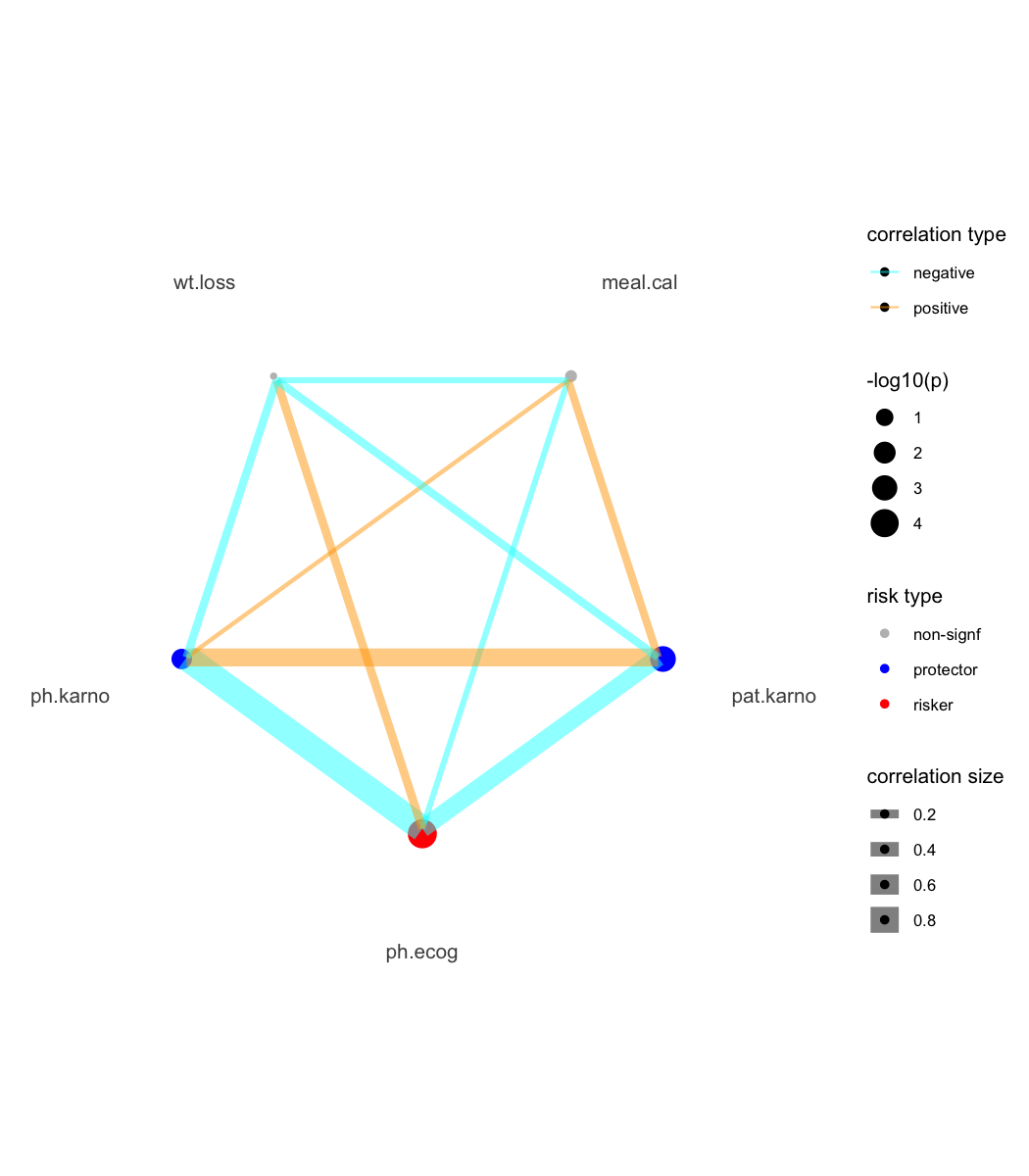

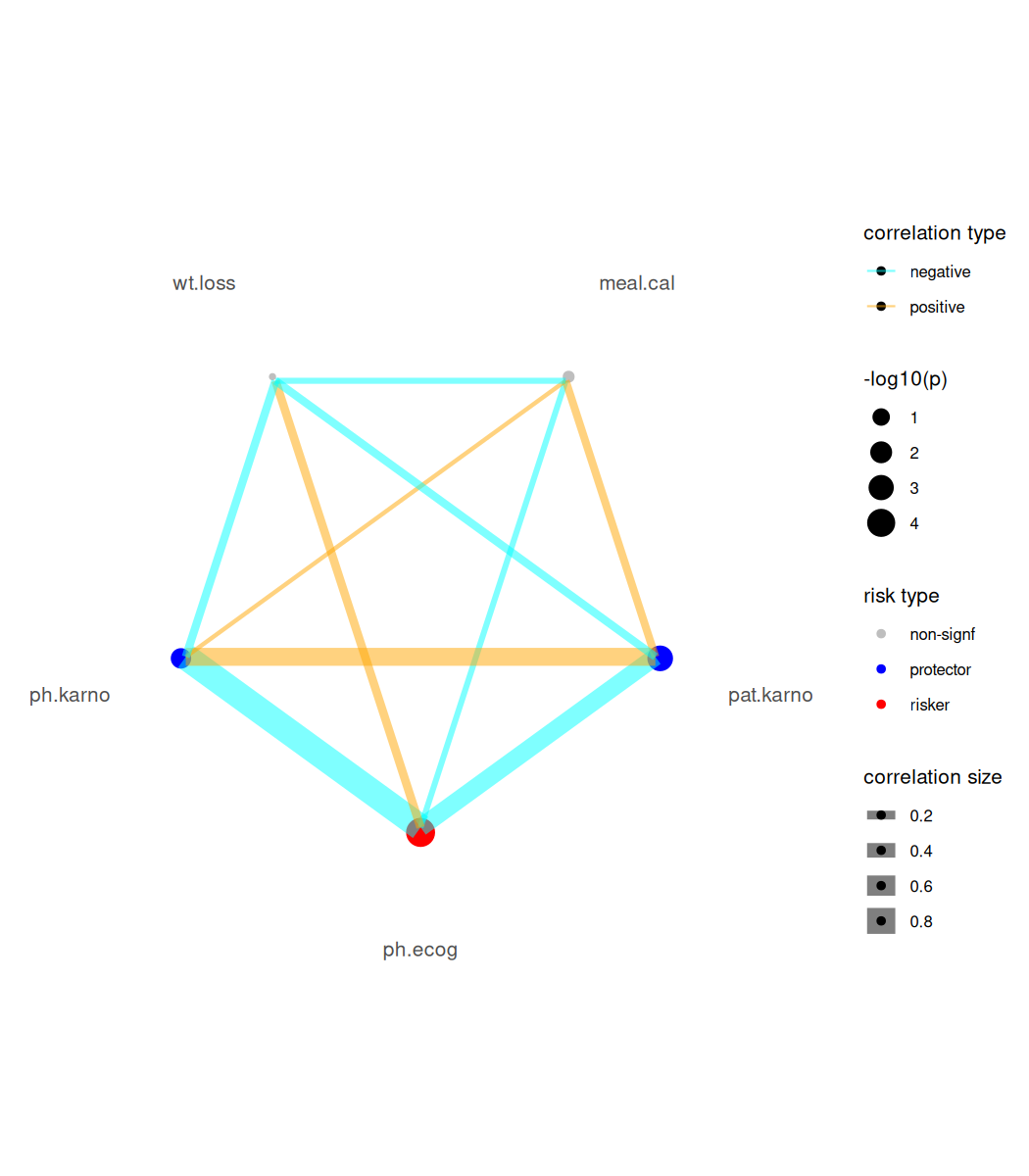

For Cox-PH modeling results (focal variables must be continuous type), we provide a risk network plotting function.

mds2 <- br_pipeline(
  survival::lung,
  y = c("time", "status"),
  x = colnames(survival::lung)[6:10],
  x2 = c("age", "sex"),
  method = "coxph"
)
#> exponentiate estimates of model(s) constructed from coxph method at default

br_show_risk_network(mds2)
#> please note only continuous focal terms analyzed and visualized

Model Score Prediction and Survival Curves

For Cox-PH models, you can generate model predictions (risk scores) and create survival curves grouped by these scores:

# Generate model predictions
scores <- br_predict(mds2, idx = "ph.ecog")
#> `type` is not specified, use lp for the model
#> Warning: some predictions are NA, consider checking your data for missing
#> values
head(scores)
#>          1          2          3          4          5          6
#>  0.3692998 -0.1608293 -0.2936304  0.1811648 -0.2493634  0.3692998

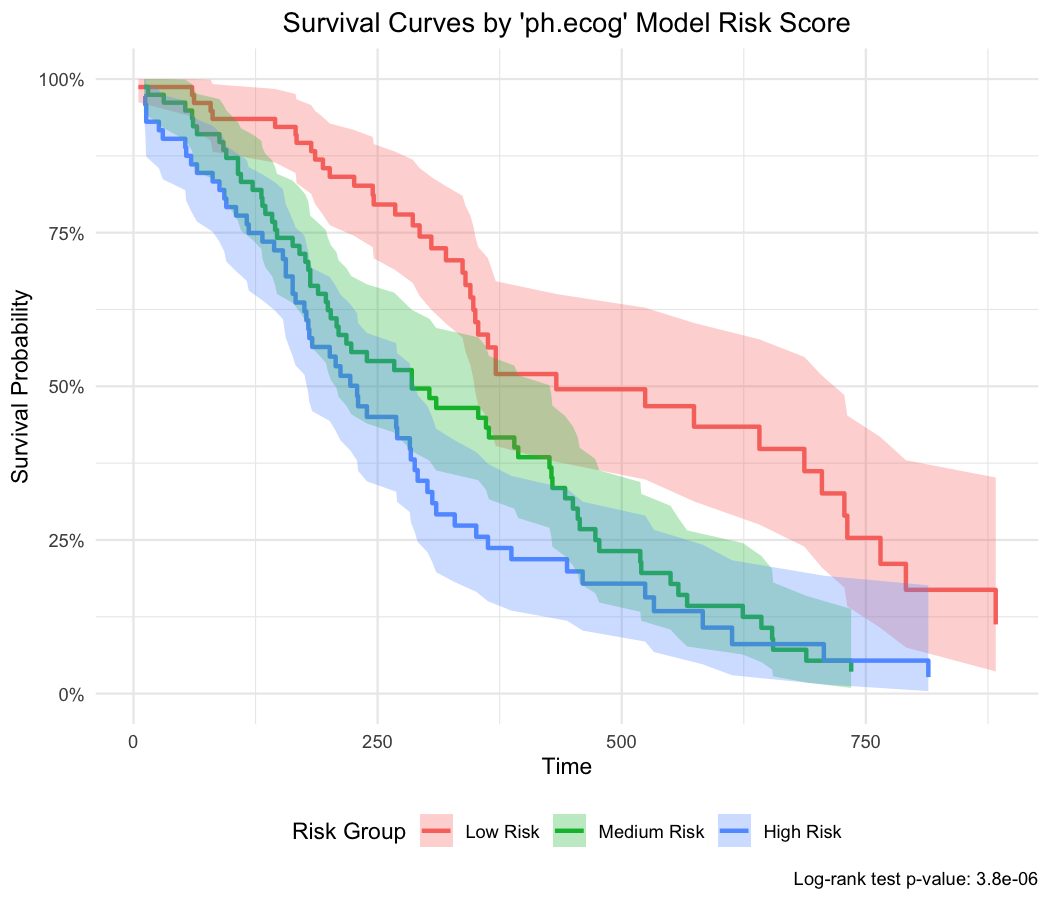

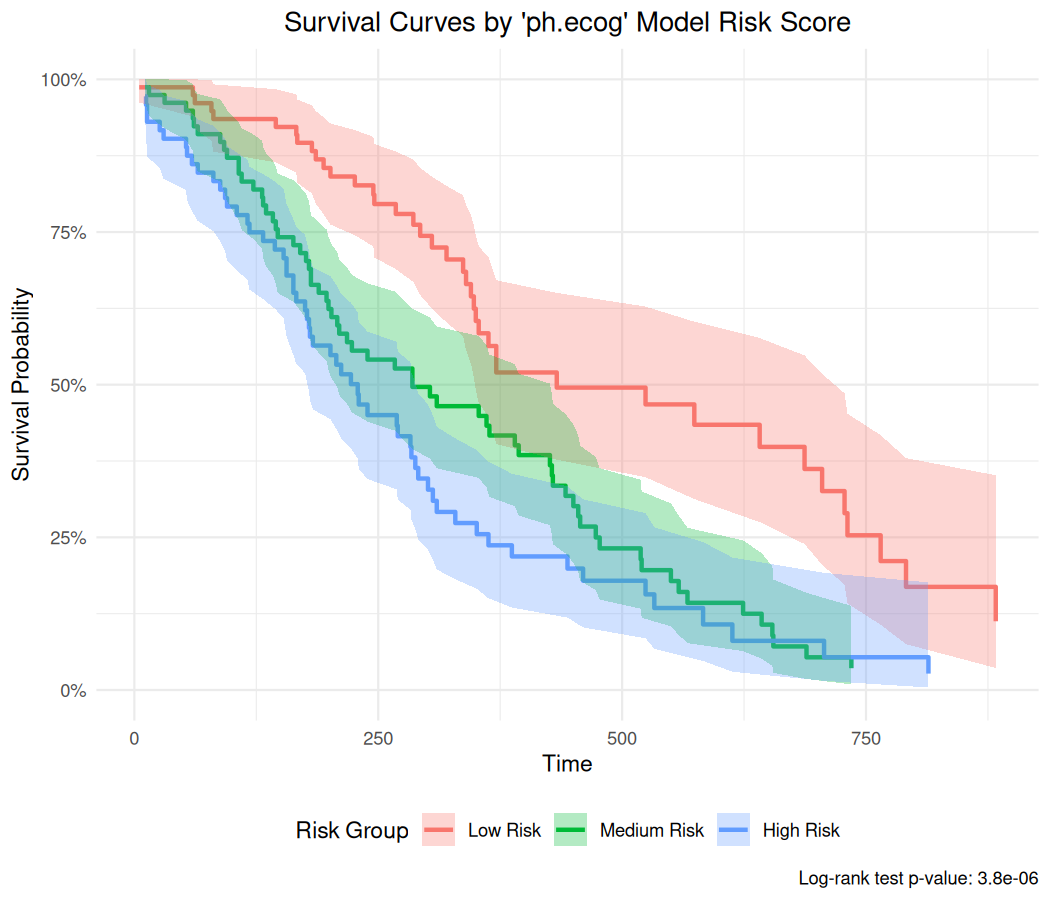

# Create survival curves based on model scores
br_show_survival_curves(
  mds2,
  idx = "ph.ecog",
  n_groups = 3,
  title = "Survival Curves by 'ph.ecog' Model Risk Score"
)
#> Warning: some predictions are NA, consider checking your data for missing
#> values

Table

Show tidy table result as pretty table:

br_show_table(mds)
#>    Focal_variable      term estimate std.error statistic p.value     conf.int
#> 1         ph.ecog  ph.ecog1     1.51      0.20      2.05  0.040  [1.02, 2.23]
#> 2         ph.ecog  ph.ecog2     2.47      0.23      3.96  < .001 [1.58, 3.86]
#> 3         ph.ecog       age     1.01  9.31e-03      1.16  0.247  [0.99, 1.03]
#> 4         ph.ecog       sex     0.58      0.17     -3.24  0.001  [0.42, 0.81]
#> 5        ph.karno  ph.karno     0.99  5.95e-03     -2.06  0.040  [0.98, 1.00]
#> 6        ph.karno       age     1.01  9.46e-03      1.33  0.182  [0.99, 1.03]
#> 7        ph.karno       sex     0.62      0.17     -2.88  0.004  [0.44, 0.86]
#> 8       pat.karno pat.karno     0.98  5.68e-03     -3.30  < .001 [0.97, 0.99]
#> 9       pat.karno       age     1.01  9.38e-03      1.24  0.213  [0.99, 1.03]
#> 10      pat.karno       sex     0.60      0.17     -2.98  0.003  [0.43, 0.84]
#> 11       meal.cal  meal.cal     1.00  2.41e-04     -0.64  0.524  [1.00, 1.00]
#> 12       meal.cal       age     1.02      0.01      1.41  0.159  [0.99, 1.04]
#> 13       meal.cal       sex     0.62      0.19     -2.49  0.013  [0.43, 0.90]
#> 14        wt.loss   wt.loss     1.00  6.29e-03     -0.04  0.966  [0.99, 1.01]
#> 15        wt.loss       age     1.02  9.72e-03      2.05  0.040  [1.00, 1.04]
#> 16        wt.loss       sex     0.60      0.17     -2.90  0.004  [0.43, 0.85]

As markdown table:

br_show_table(mds, export = TRUE)
#> Focal_variable |      term | estimate | std.error | statistic | p.value |     conf.int
#> --------------------------------------------------------------------------------------
#> ph.ecog        |  ph.ecog1 |     1.51 |      0.20 |      2.05 |  0.040  | [1.02, 2.23]
#> ph.ecog        |  ph.ecog2 |     2.47 |      0.23 |      3.96 |  < .001 | [1.58, 3.86]
#> ph.ecog        |       age |     1.01 |  9.31e-03 |      1.16 |  0.247  | [0.99, 1.03]
#> ph.ecog        |       sex |     0.58 |      0.17 |     -3.24 |  0.001  | [0.42, 0.81]
#> ph.karno       |  ph.karno |     0.99 |  5.95e-03 |     -2.06 |  0.040  | [0.98, 1.00]
#> ph.karno       |       age |     1.01 |  9.46e-03 |      1.33 |  0.182  | [0.99, 1.03]
#> ph.karno       |       sex |     0.62 |      0.17 |     -2.88 |  0.004  | [0.44, 0.86]
#> pat.karno      | pat.karno |     0.98 |  5.68e-03 |     -3.30 |  < .001 | [0.97, 0.99]
#> pat.karno      |       age |     1.01 |  9.38e-03 |      1.24 |  0.213  | [0.99, 1.03]
#> pat.karno      |       sex |     0.60 |      0.17 |     -2.98 |  0.003  | [0.43, 0.84]
#> meal.cal       |  meal.cal |     1.00 |  2.41e-04 |     -0.64 |  0.524  | [1.00, 1.00]
#> meal.cal       |       age |     1.02 |      0.01 |      1.41 |  0.159  | [0.99, 1.04]
#> meal.cal       |       sex |     0.62 |      0.19 |     -2.49 |  0.013  | [0.43, 0.90]
#> wt.loss        |   wt.loss |     1.00 |  6.29e-03 |     -0.04 |  0.966  | [0.99, 1.01]
#> wt.loss        |       age |     1.02 |  9.72e-03 |      2.05 |  0.040  | [1.00, 1.04]
#> wt.loss        |       sex |     0.60 |      0.17 |     -2.90 |  0.004  | [0.43, 0.85]

As HTML table:

br_show_table(mds, export = TRUE, args_table_export = list(format = "html"))

Documentation

All functions are documented in the package reference, with full documentation available on the package site.

Coverage

covr::package_coverage()
#> bregr Coverage: 70.35%
#> R/98-utils.R: 58.17%
#> R/07-diagnostics.R: 63.41%
#> R/06-avail.R: 66.07%
#> R/04-show.R: 66.80%
#> R/04-show-nomogram-helpers.R: 68.59%
#> R/03-accessors.R: 75.31%
#> R/02-pipeline.R: 77.36%
#> R/01-class.R: 90.70%
#> R/99-zzz.R: 90.91%
#> R/05-polar.R: 92.37%

bregr: Easy and Efficient Batch Processing of Regression Models in R
